Matthew Carvajal

SAFESIGHT DRIVER SAFETY

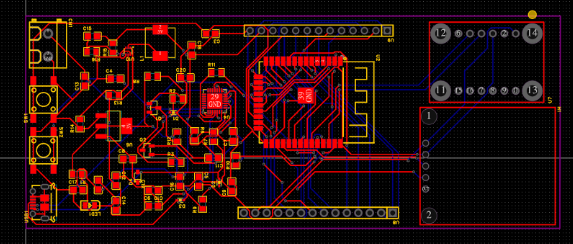

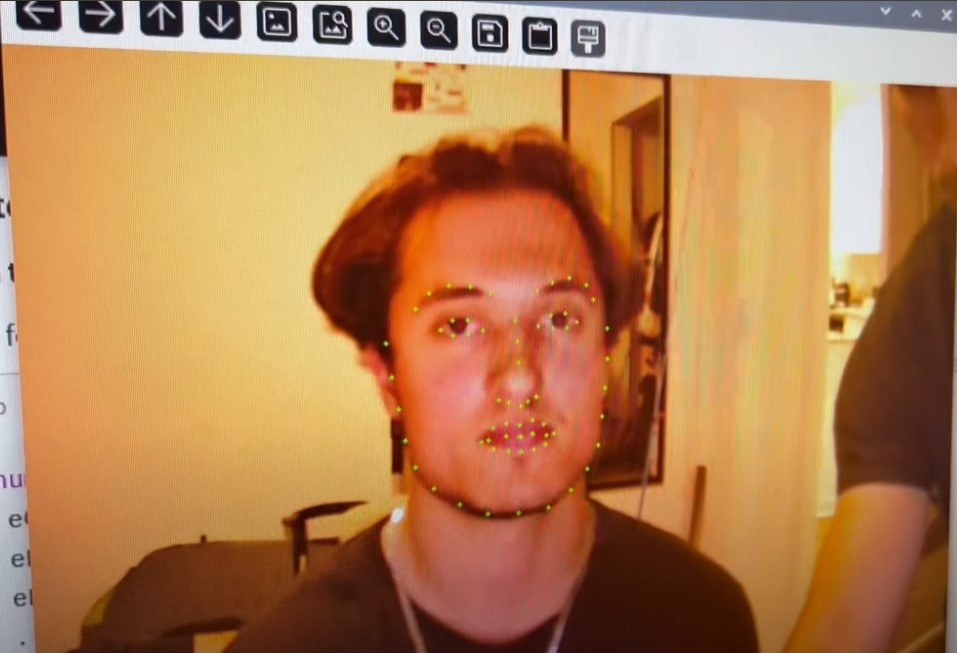

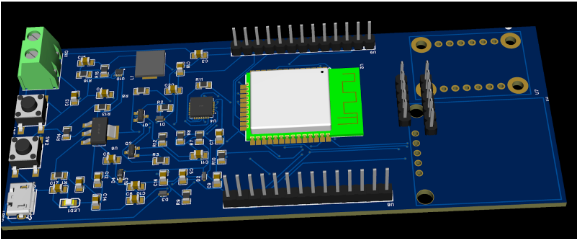

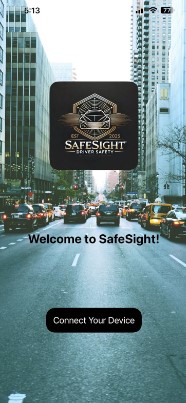

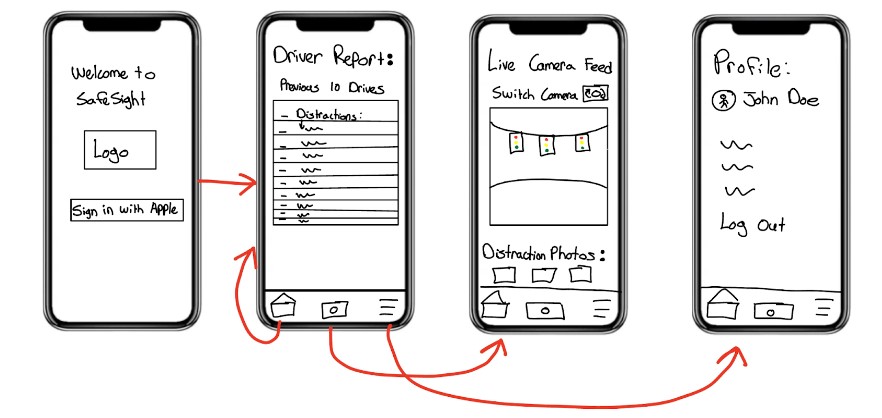

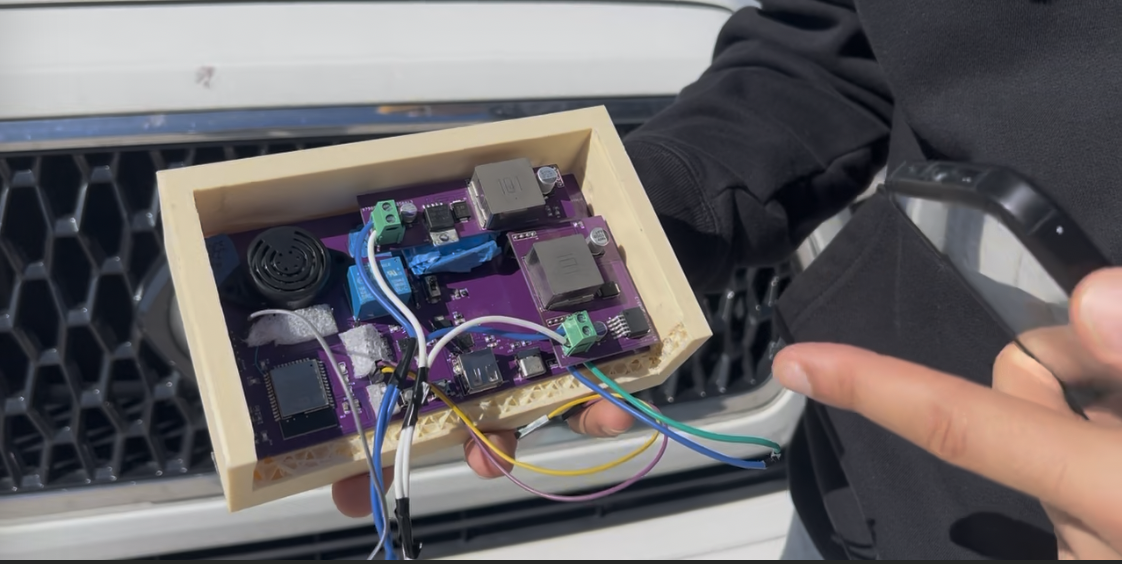

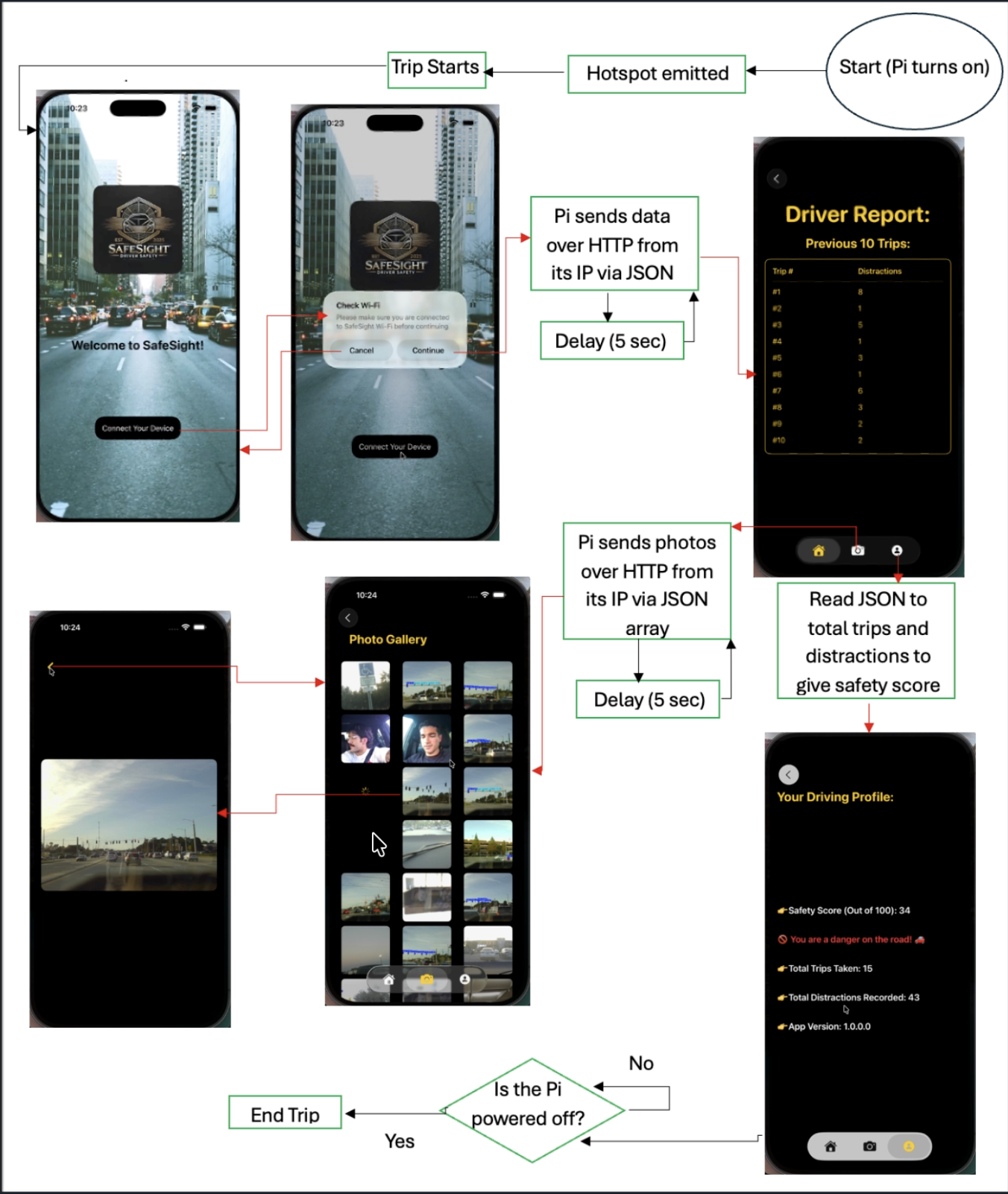

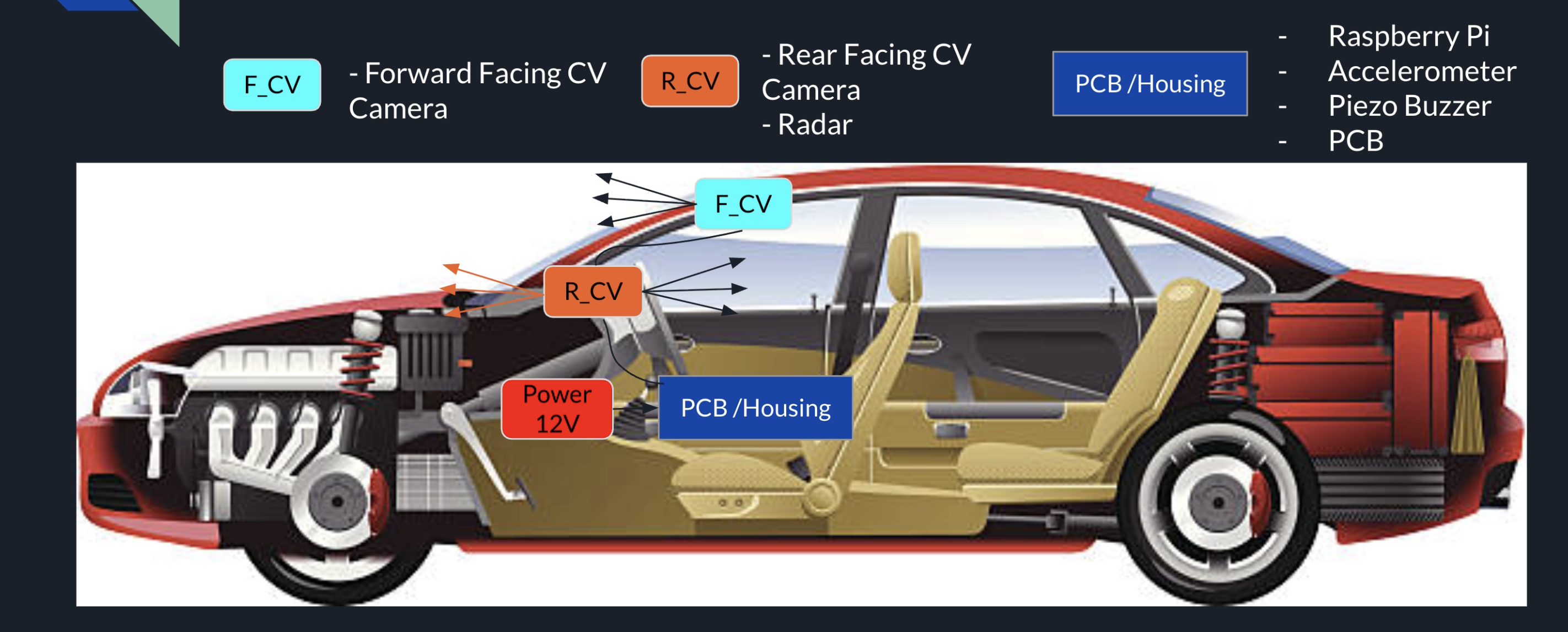

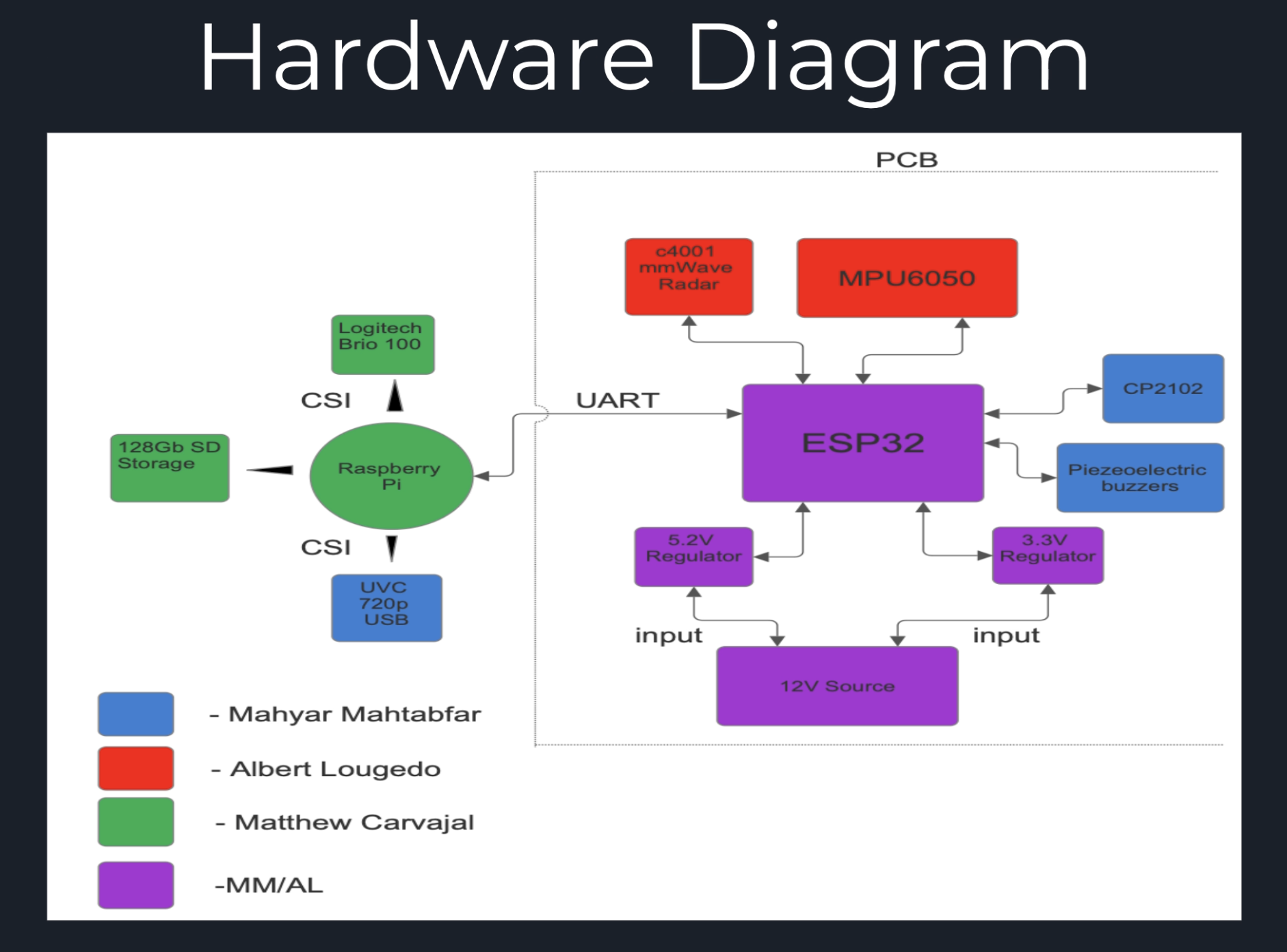

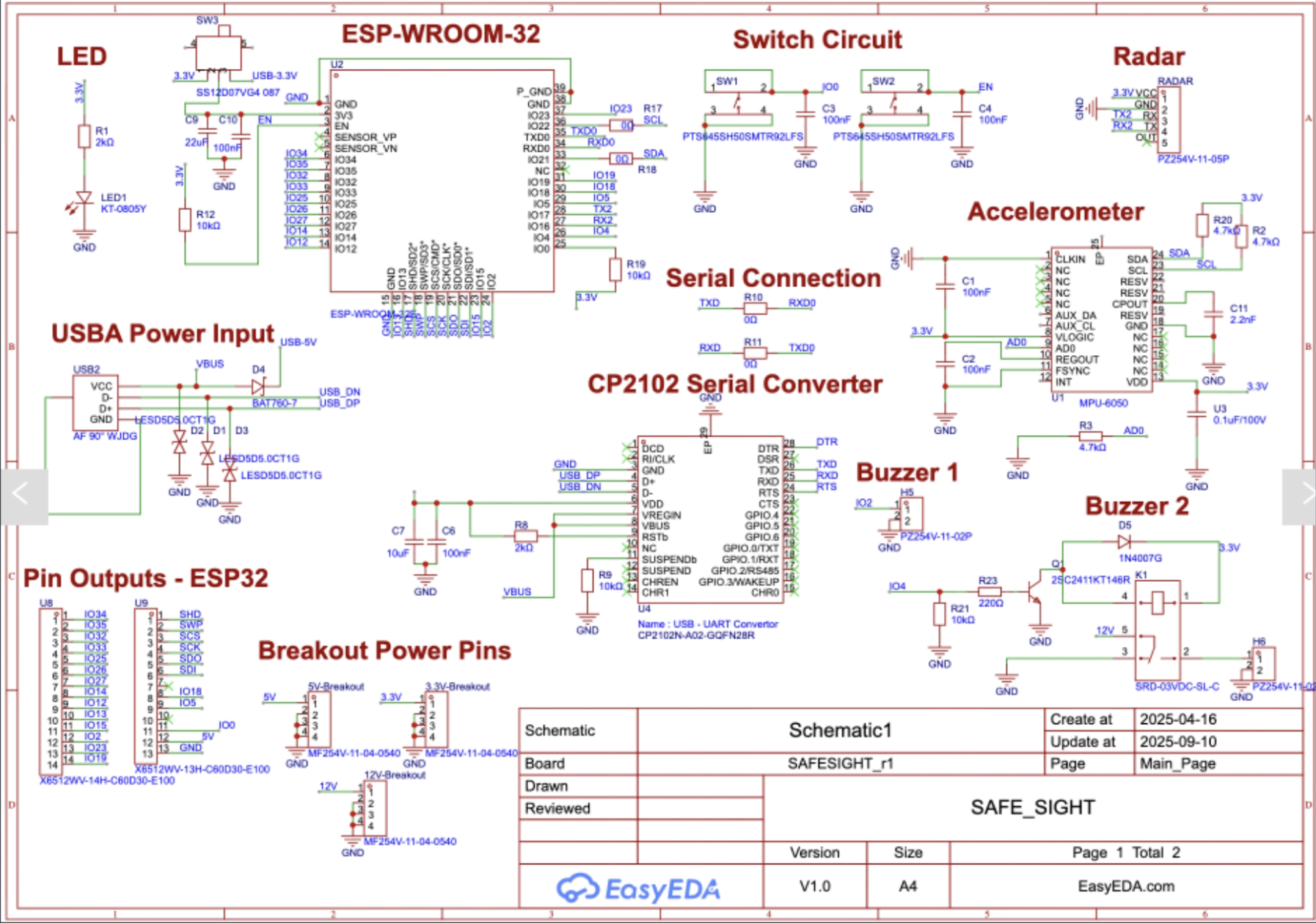

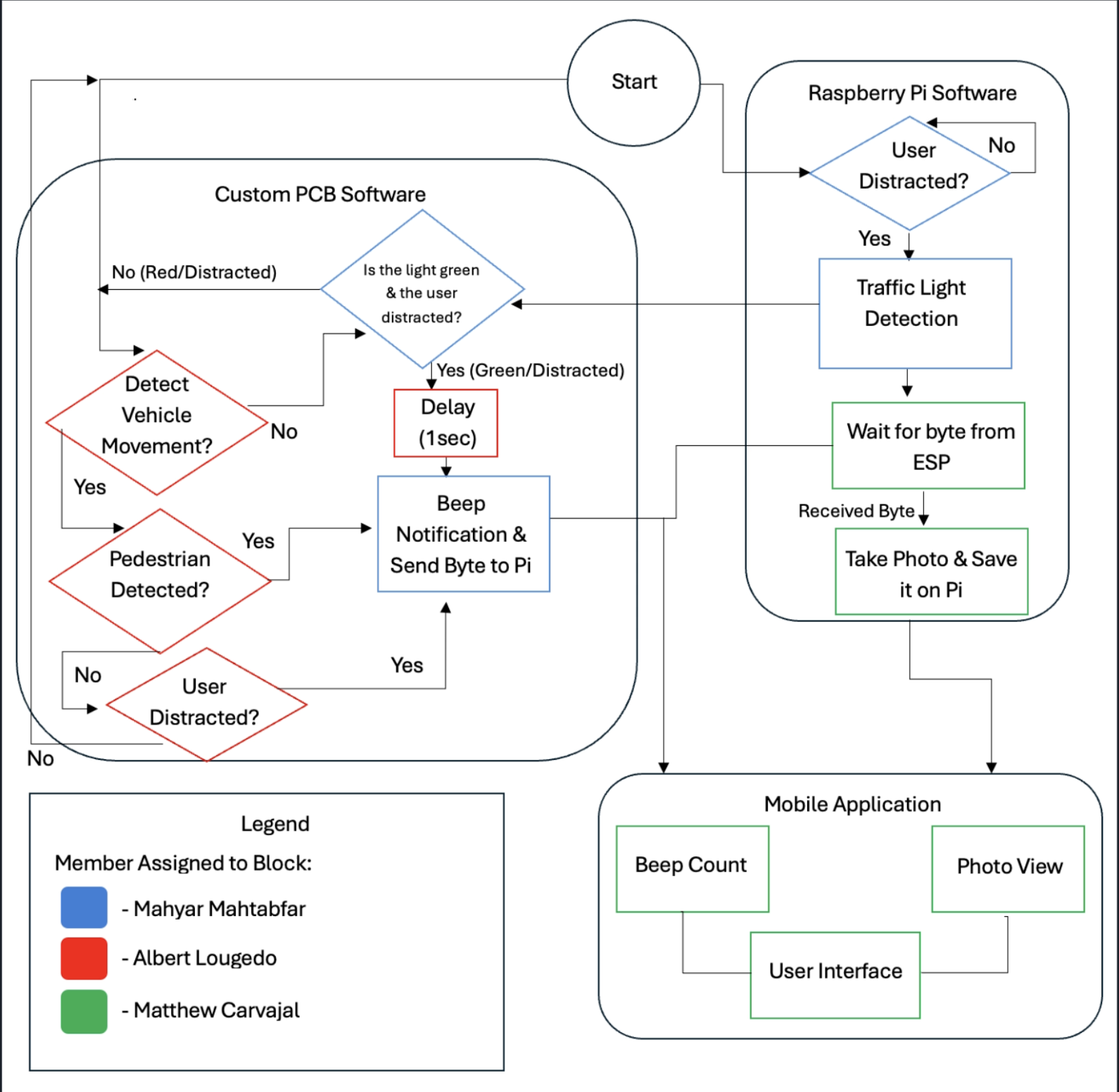

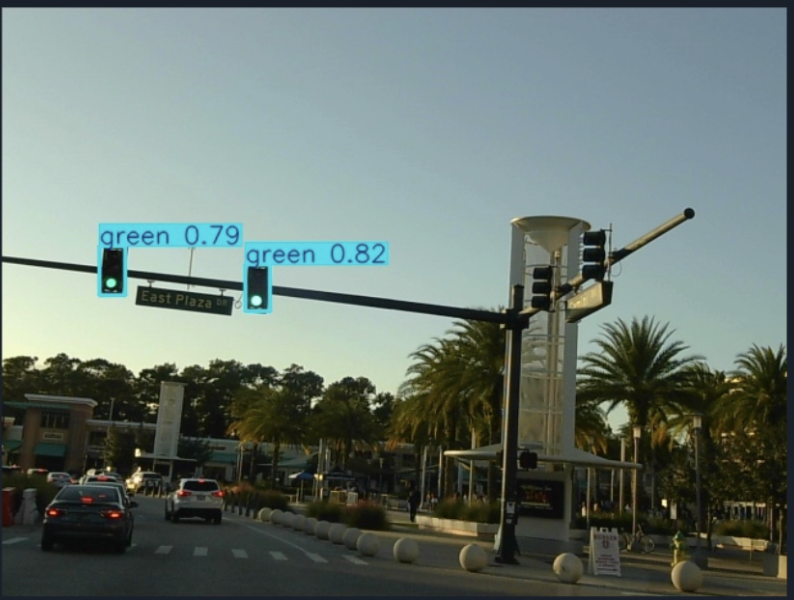

Welcome to our Senior Design project! Me and two really good friends decided to take on the challenge of creating an AI-powered driver safety device that helps keep drivers less distracted on the road. Utilizing a Raspberry Pi 5, an ESP-32, a couple of cameras, and some computer vision (OpenCV/Tensorflow), our device will keep track of traffic lights and the driver's attention awareness. This is because we have found it very frustrating when the light turns green, and no one is moving. Also, this device will help reduce cell phone usage while driving due to us keeping track of when the driver looks down at their phone. We even developed an iOS application using Swift to show each and every time the driver is distracted by taking a picture of them and sending it over to our application via Wi-Fi (Just like a GoPro would). This project took a year to complete and I am excited to showcase it here on my website! Feel free to check out the videos and pictures of our prototype below!

Previous Next

Nebula Hunters Game

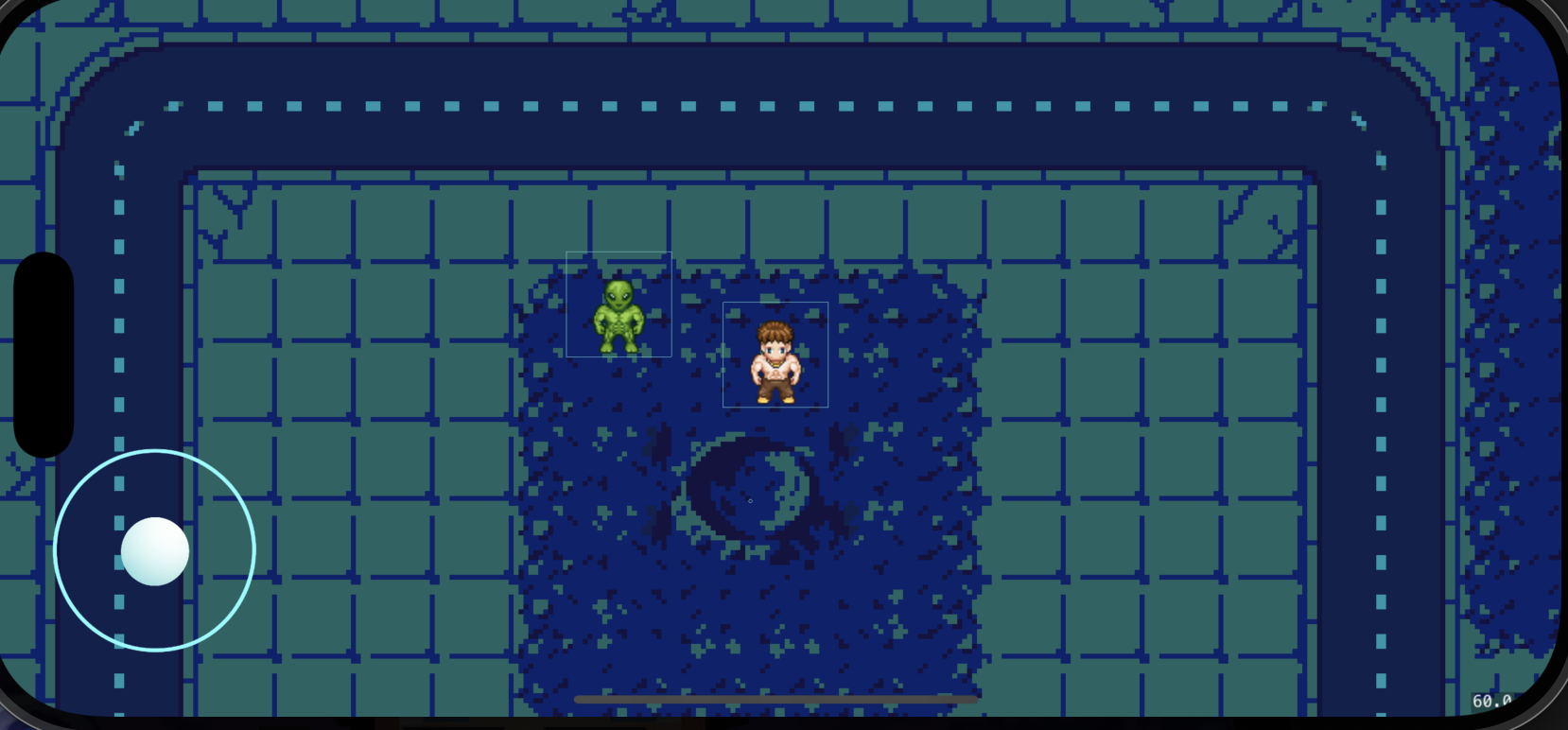

This is a solo project I am currently working on to further improve my Swift knowledge and to dive into the world of GameKit. The objective of this game is to stay alive for as long as possible with different waves of enemies. If you survive, you will move onto the next world and defeat more enemies. This project is still in the early stages of development and I can't wait for everyone to see my first pixel game on iOS. Feel free to check out the pictures below!

Previous Next

WAR CARD GAME

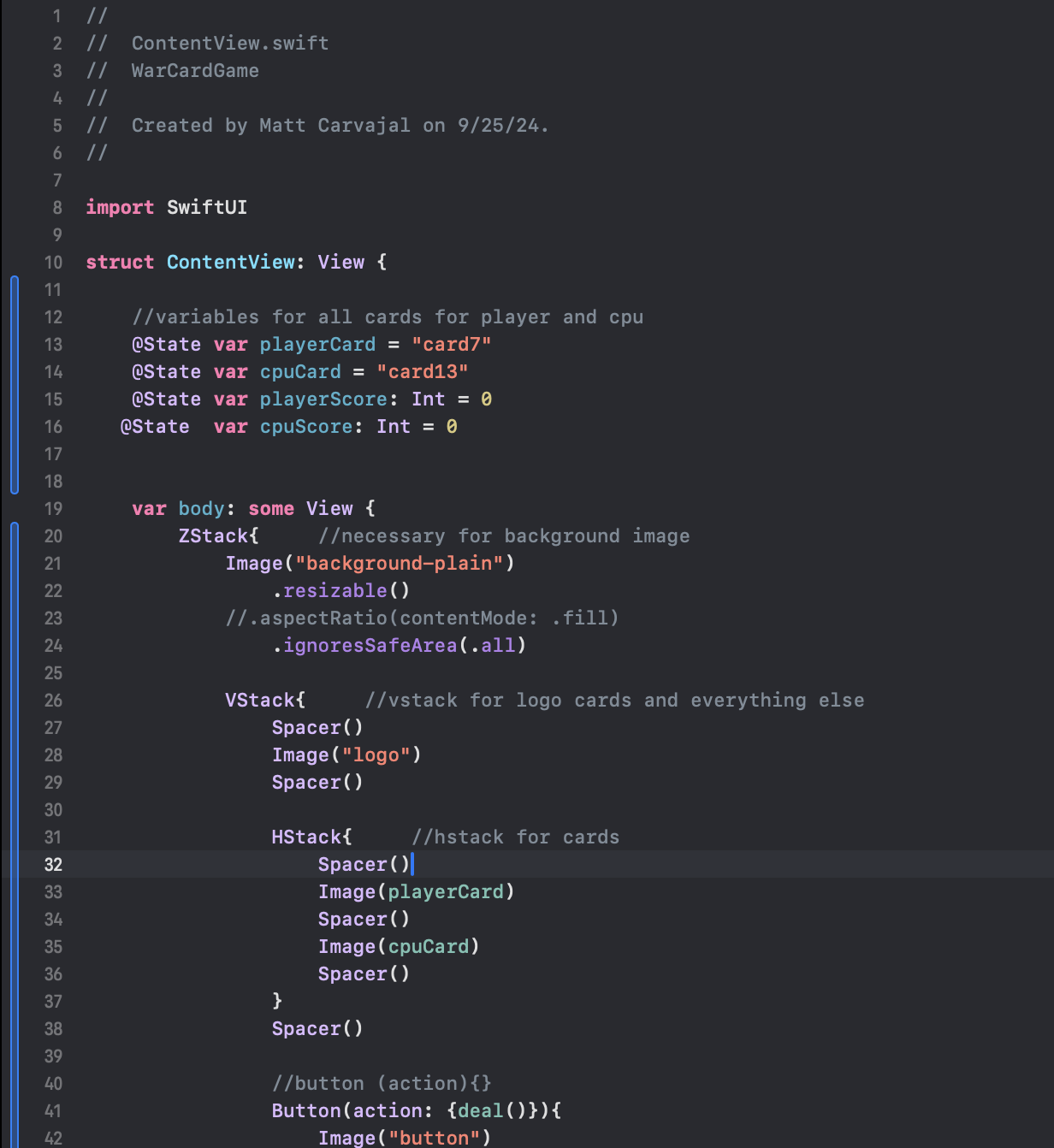

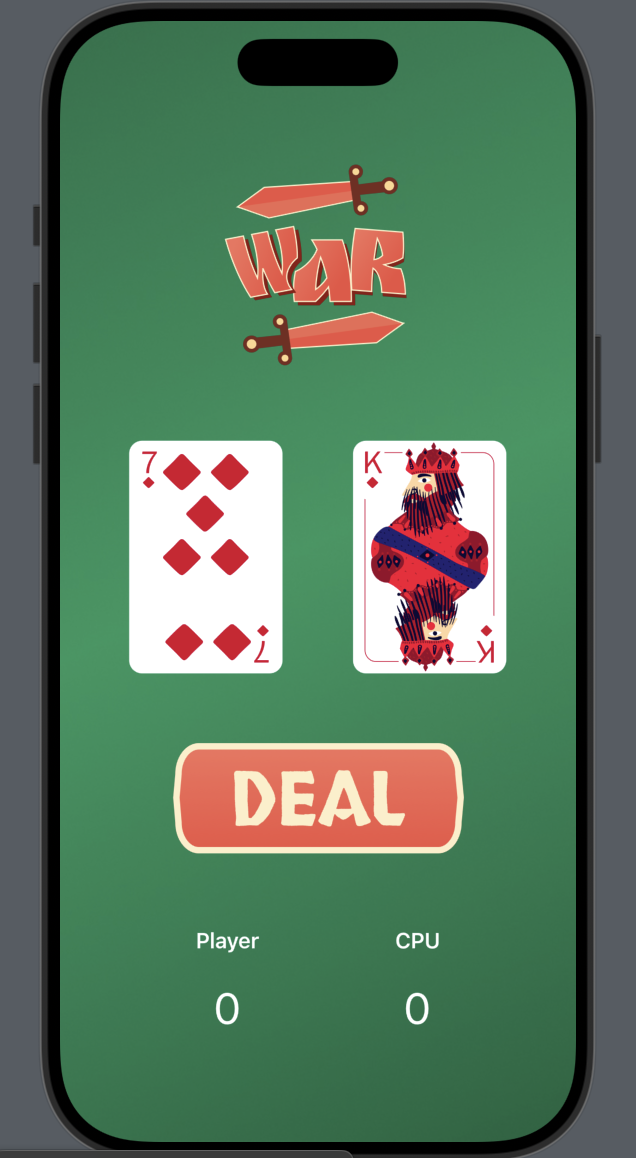

This was a solo project that I decided to take on as a massive learning experience. I wanted to know what it was like to build an app that I can install on my own device. We all have phones, but no one ever realizes how much work goes into their favorite apps. Using Swift and SwiftUI, I built this static iOS application that represents the classic card game 'War'. It is you against the computer, whoever pulls the highest card, gets a point. I love this because the game does on forever as it is one of my favorite ways to pass time. Feel free to check out the pictures below!

Previous Next

FIRE FIGHTING ROBOT

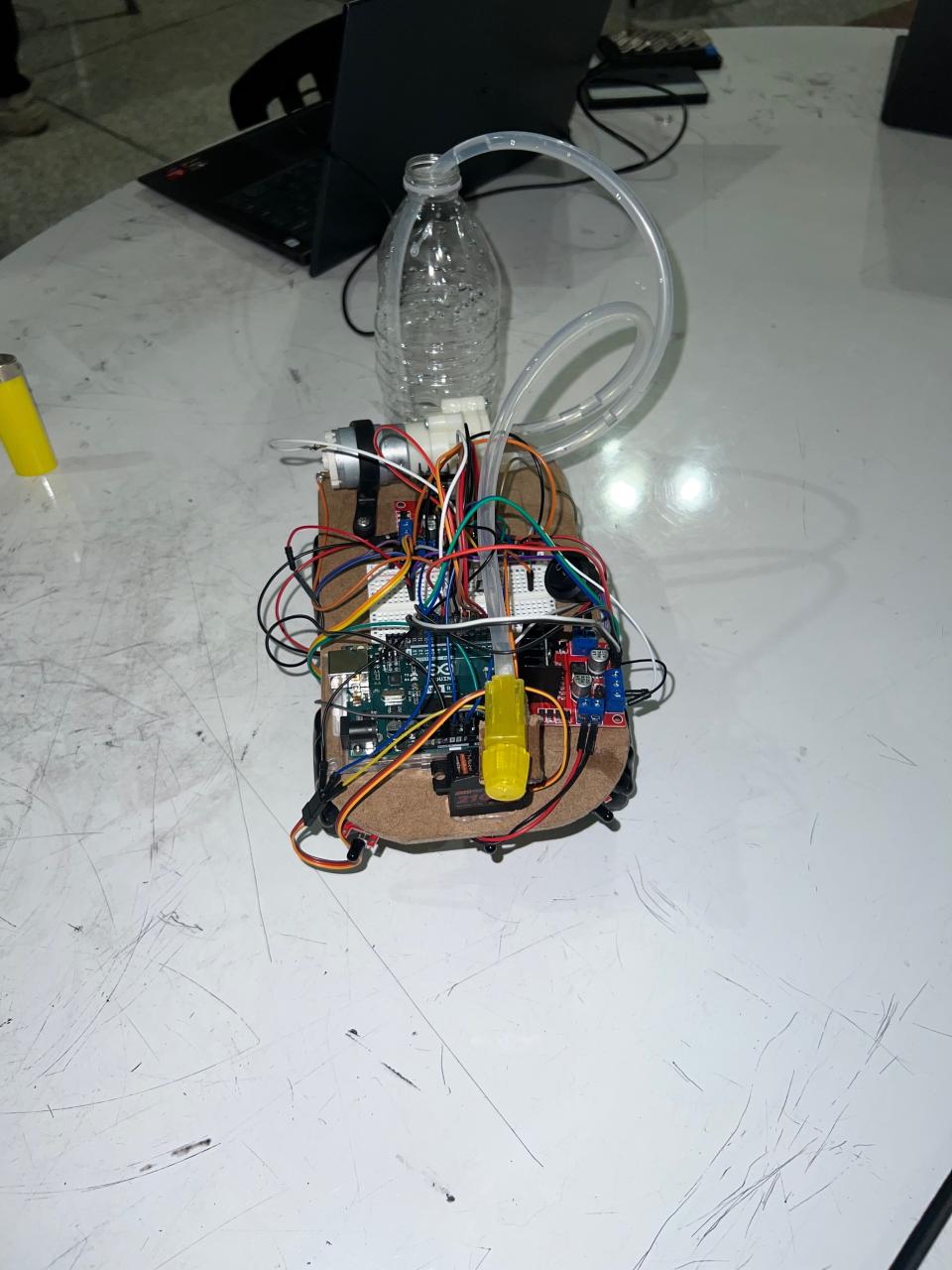

This was a group project that involved us to use our creativity to create an autonomous robot. We decided to use an Arduino Uno R3 and C++ to create an autonomous fire fighting robot that uses infrared sensors to detect heat to then navigate to and spray water to put out the fire. This project took about 2 months to complete and it turned out to be one of the coolest projects to date! Feel free to check out the photos below.

Previous Next

DIGITAL RANGE FINDER PCB

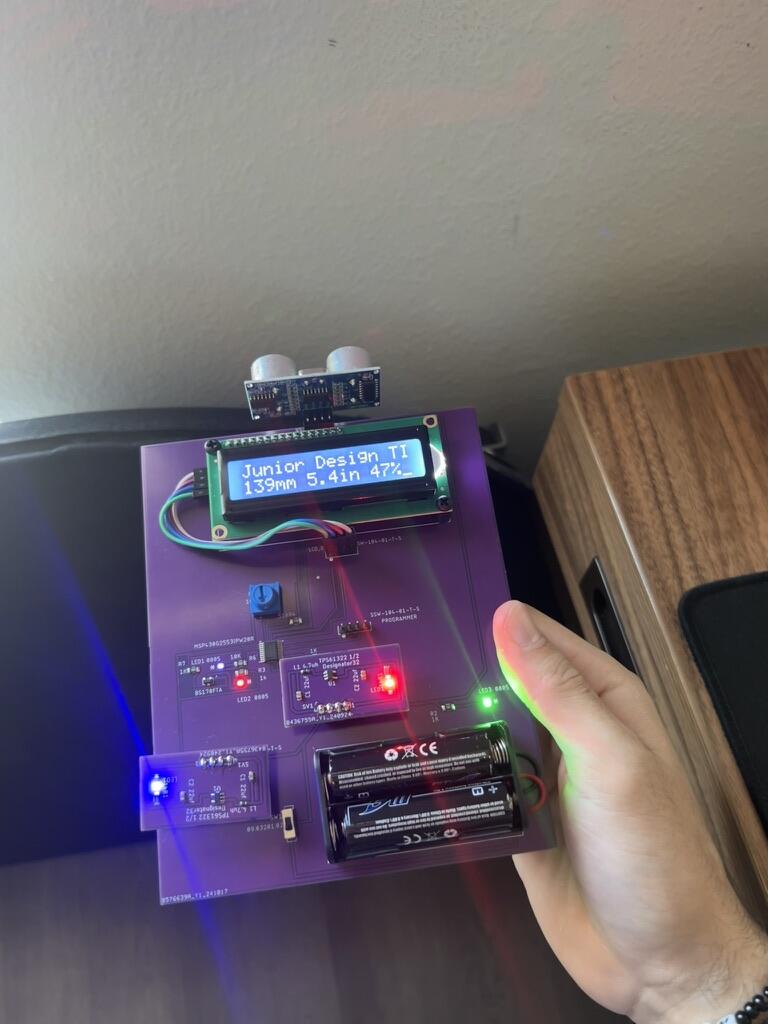

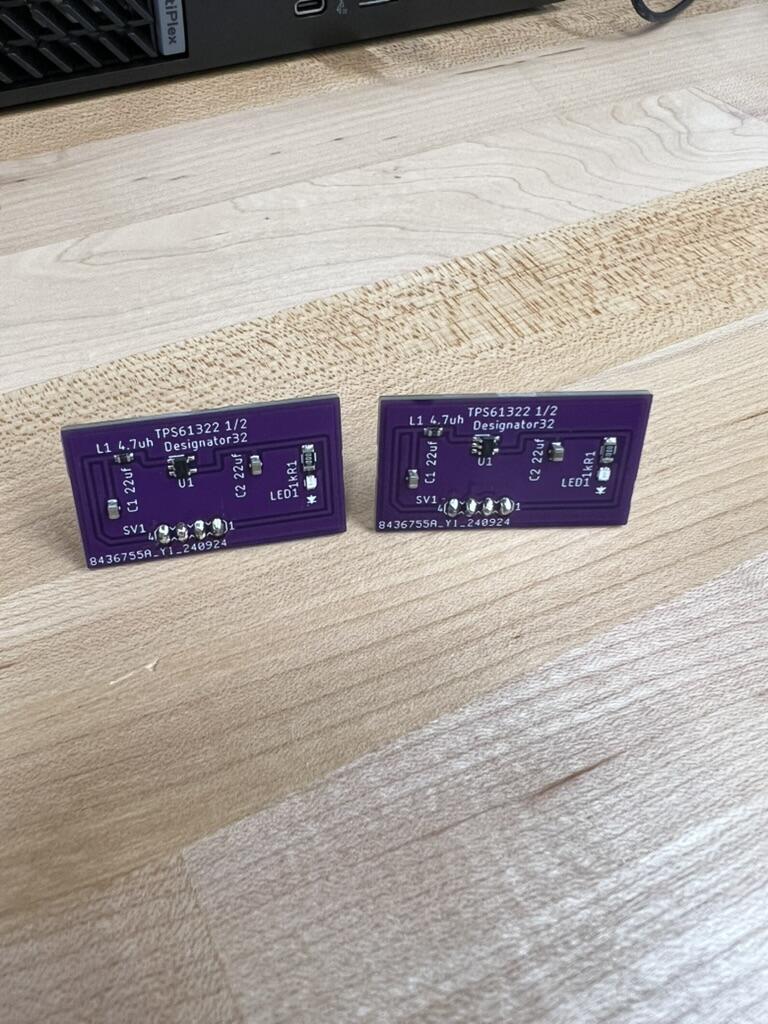

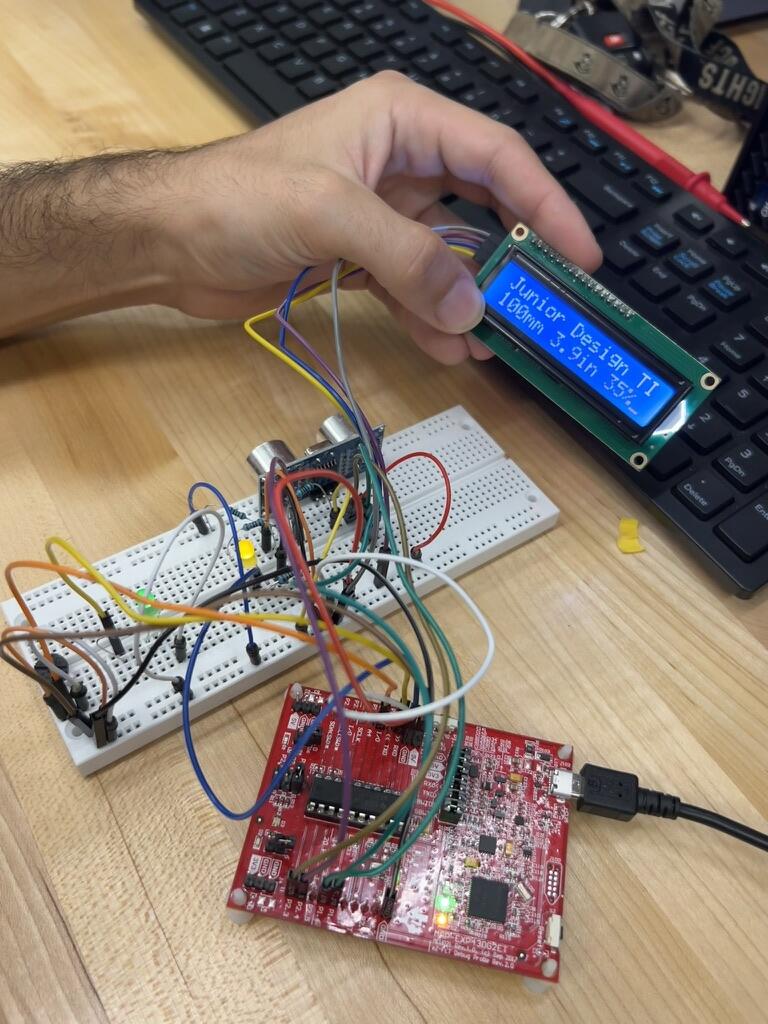

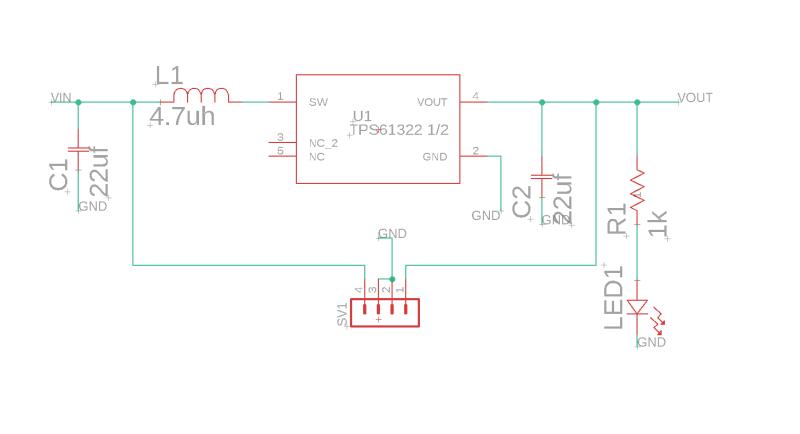

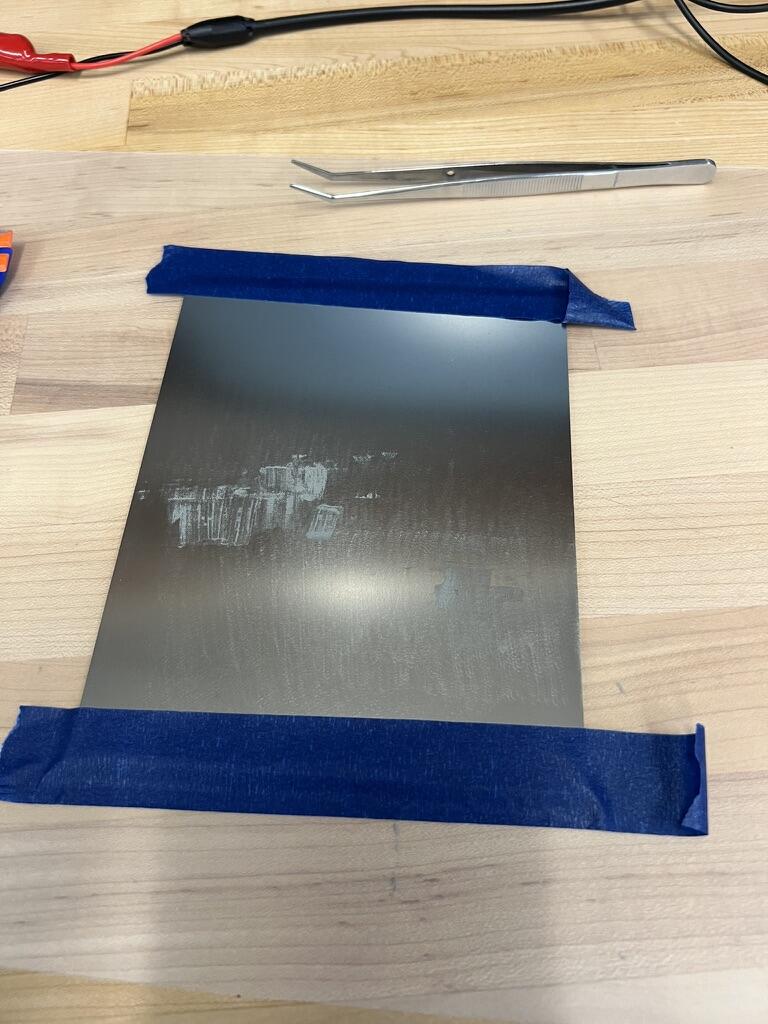

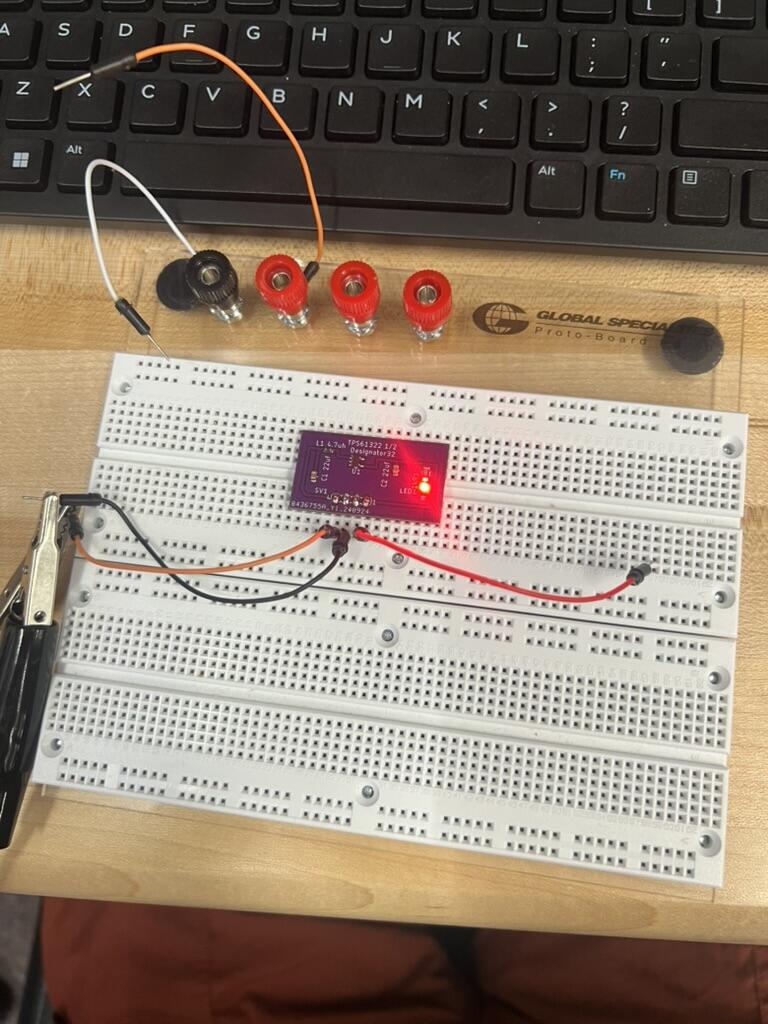

This solo project involved designing a compact, accurate distance measuring device using ultrasonic sensors and a fully custom PCB paired with 2, fully custom 3.3V and 5V regulators. Using a MSP430 microcontroller, I built, prototyped, and fabricated one of my favorite projects to date. I was also introduced to the reflow oven soldering process to carefully place the components onto the custom PCB.

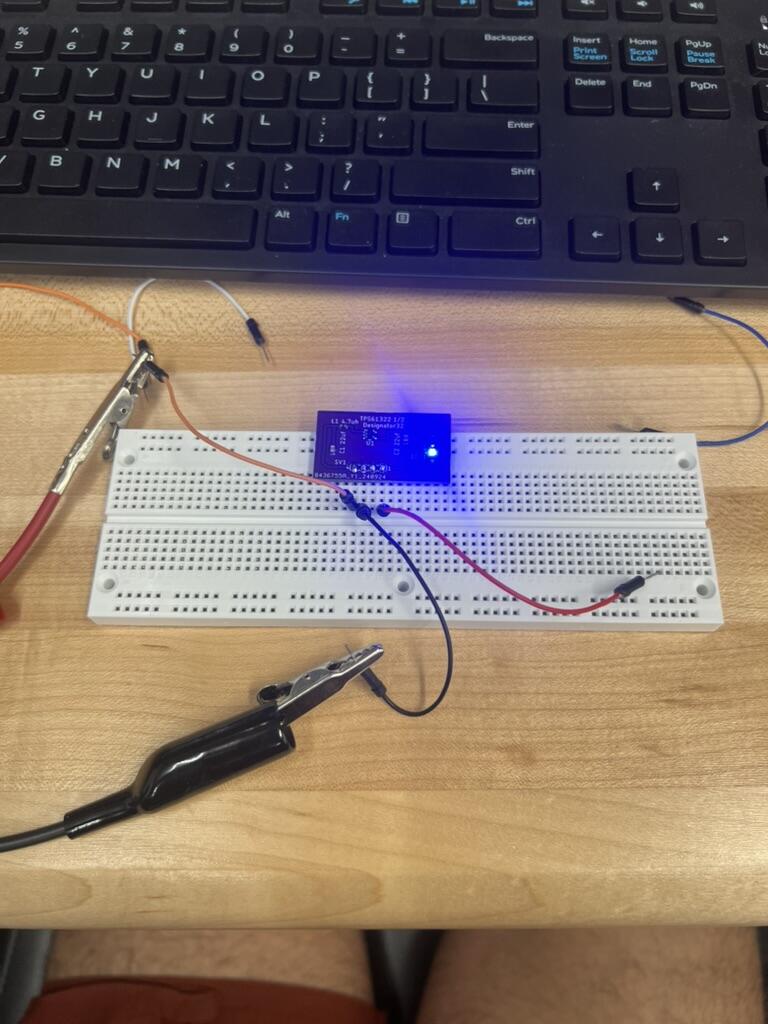

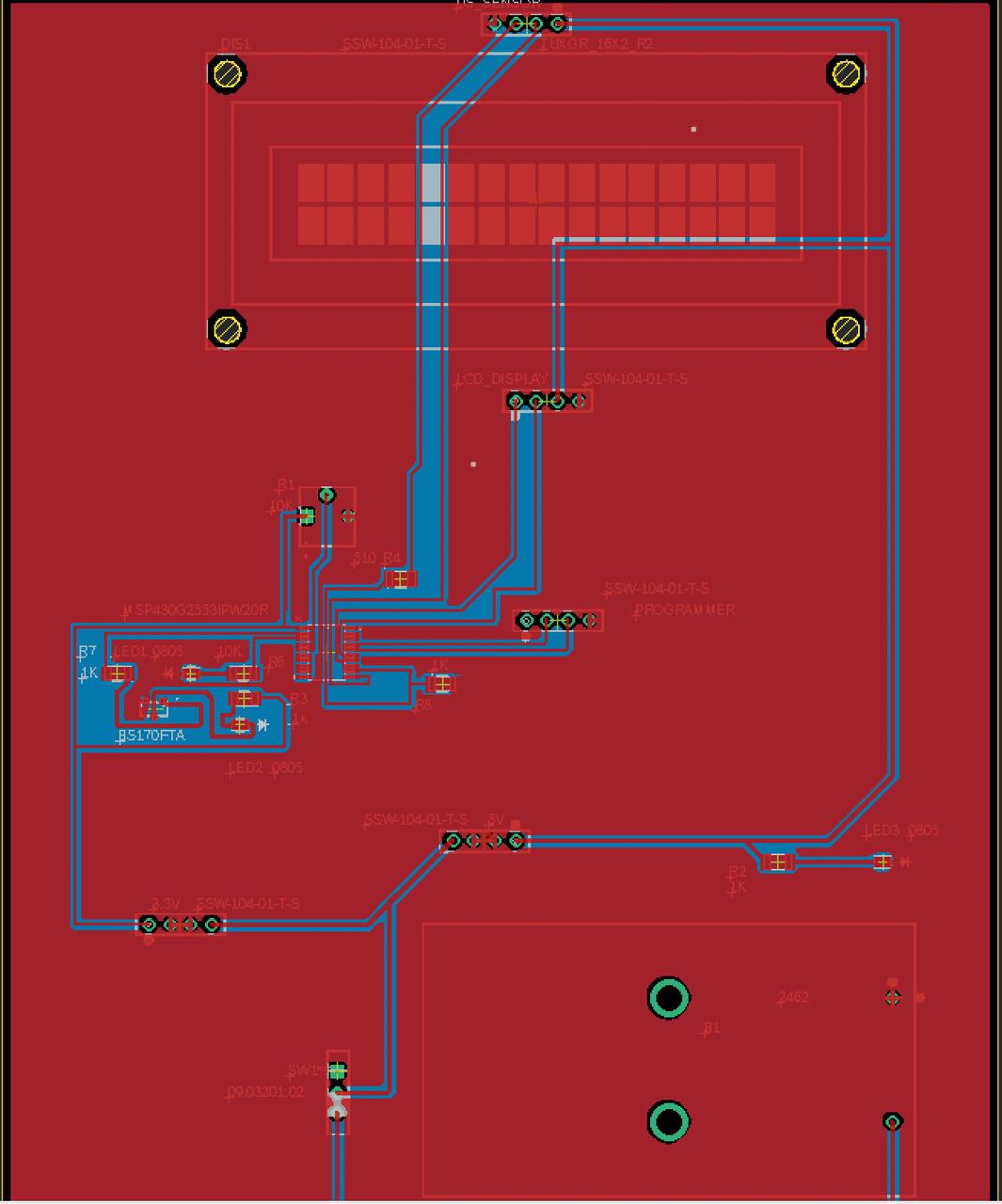

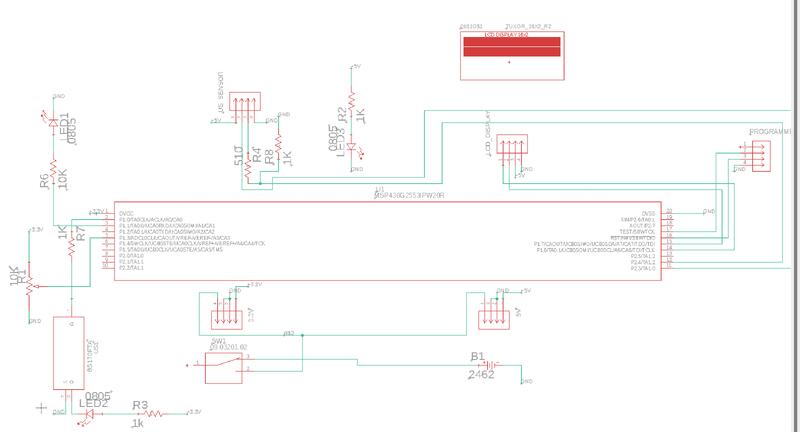

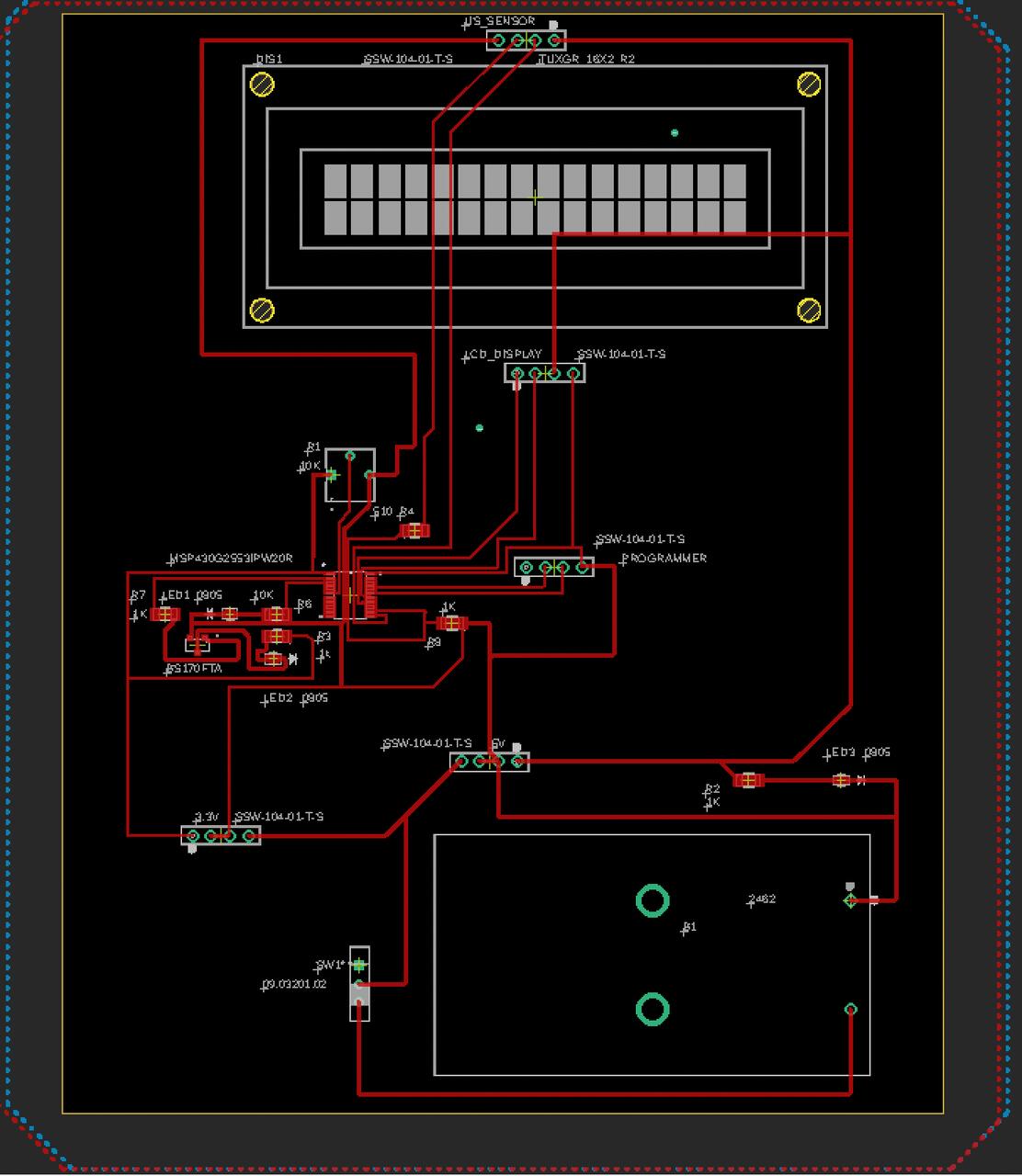

Below, you will see all of the schematics drawn in Autodesk EAGLE that were sent to JLCPCB for fabrication. During the fabrication process, I then tested and programmed a MSP430 development board with my code to make sure by time I got the PCB back from fabrication, all I had to do was upload the code to my PCB. Overall, this was a massive learning experience that took almost 3 months of design, testing and debugging for this project to work as intended. Feel free to check out the schematics and pictures of the fabrication process below!

Previous Next

CONTACT MANAGER WEBSITE

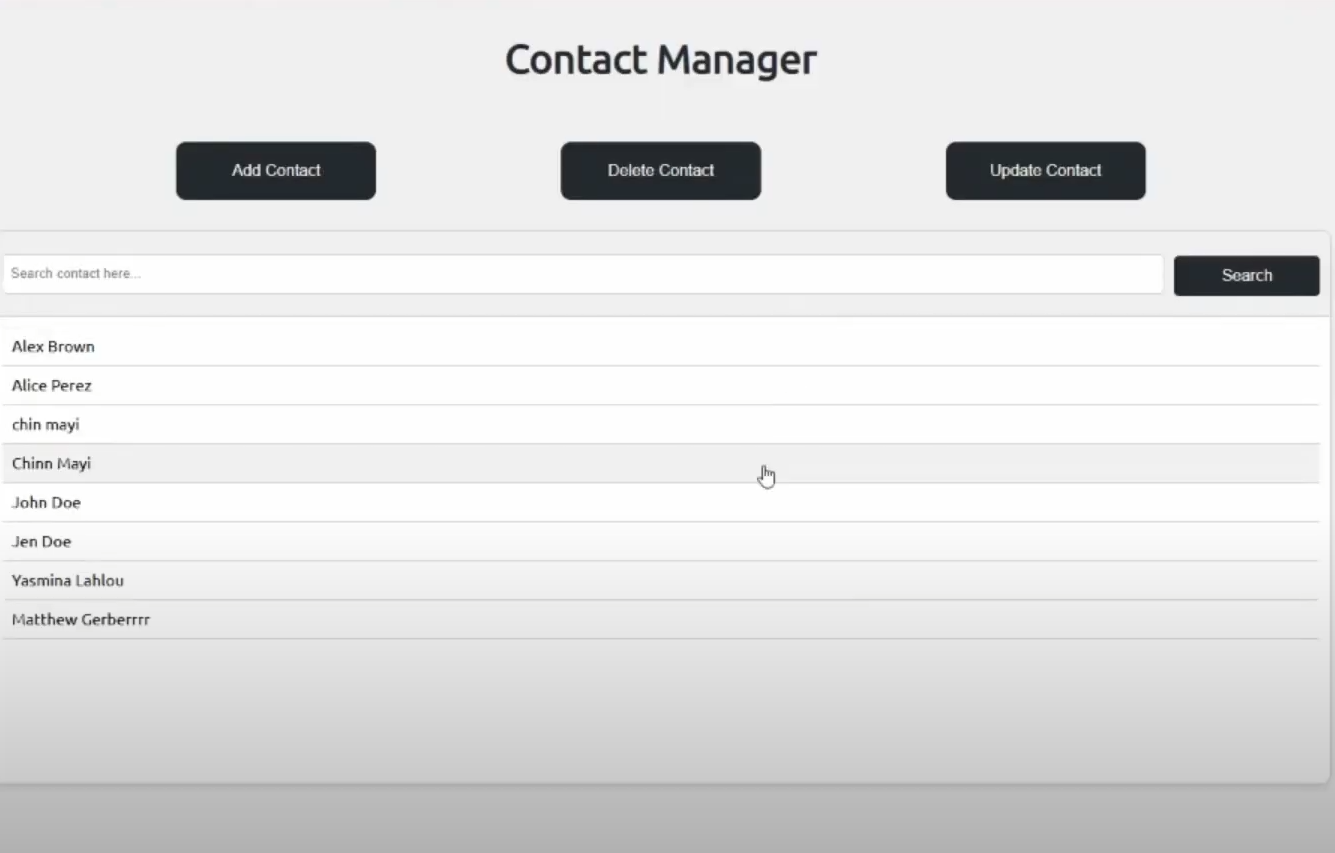

This was a group project that involved the making of a contact manager web application using a LAMP stack. This is a tech stack that includes Linux, Apache, MARIADB, and PHP. Using these technologies, we created a contact manager that utilized the CRUD operations (create, remove, update and delete) to manage their contacts. Our website was hosted using AWS Lightsail where I used the integrated Linux terminal to establish a GitHub connection with a repository so we all can organize our work. This project lasted about 2 months and it was a massive learning experience since most of us have never done something like this before. Feel free to check out the UI below and if you want, the code for the project is in my GitHub at the top of my website.

Previous Next

PERSONAL GAMING PCS

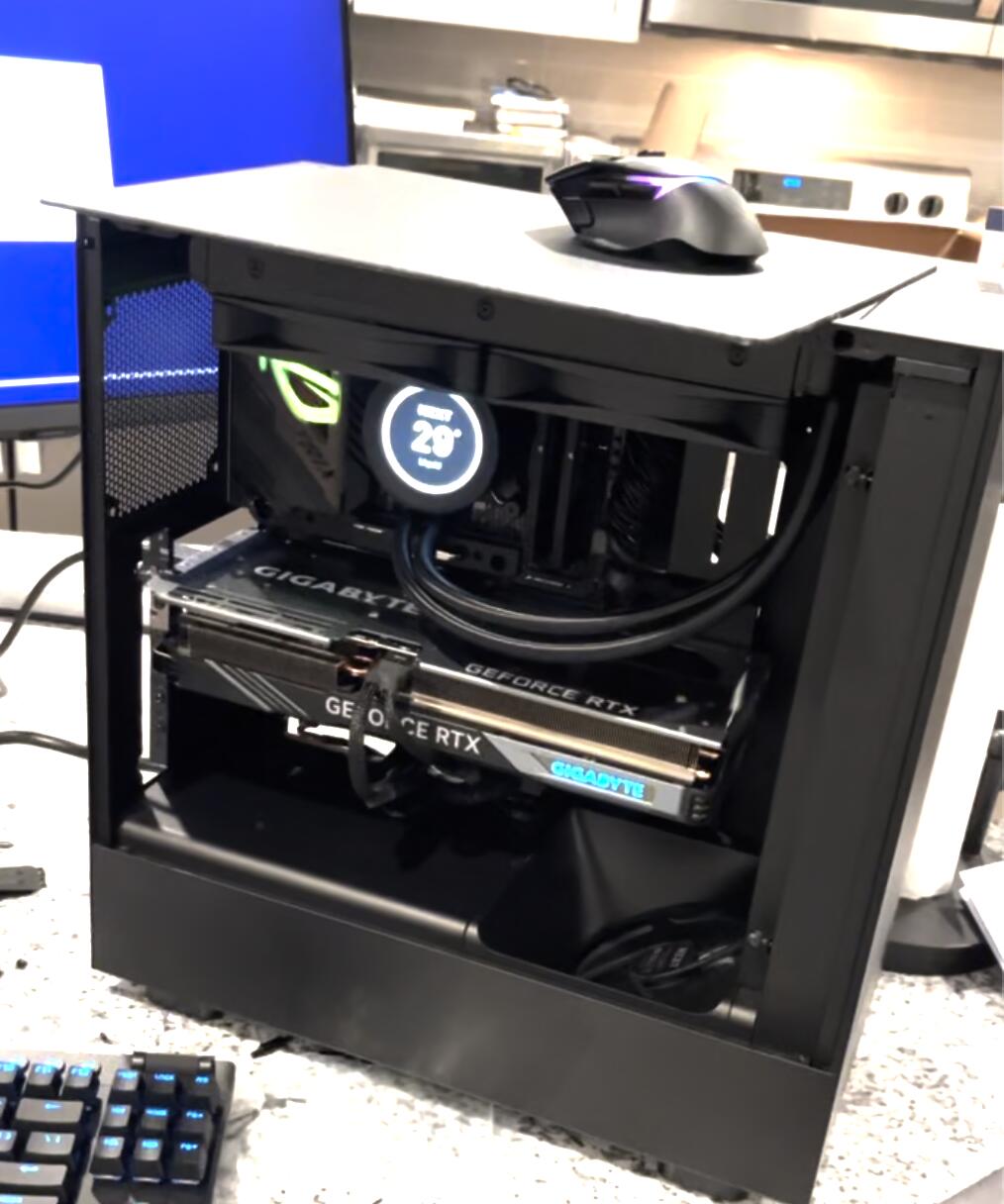

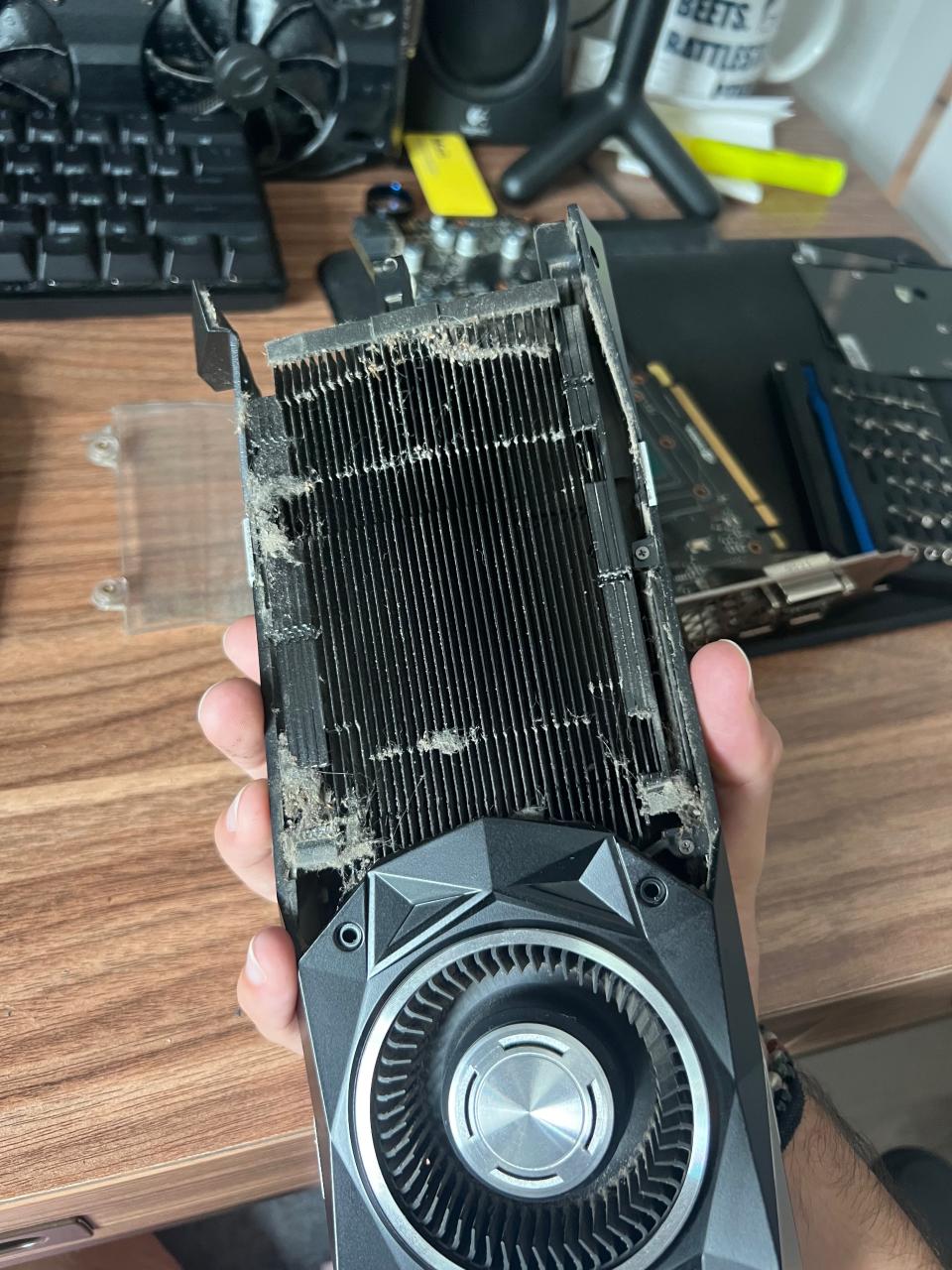

Over the years, I have built, maintained and tested several gaming PCs and personal computers. It has always been a passion of mine to take apart computers to understand the components, processes and overall functionality of a complex system. In one of the pictures below, you will see that I took apart an NVIDIA GTX 1080 because it had some overheating issues. I managed to clean it and put new thermal pads inside to get the operating temperature down from 190F to about 150F under load. I have also optimized systems with a benchmarking tool seen below called Heaven Benchmark in order to see how well the system is perfoming. Overall, I love the joy of putting such a complex system together, testing it, and using it to play games, do work, etc. Feel free to check out some of the systems that I have built over the years!

Previous Next
